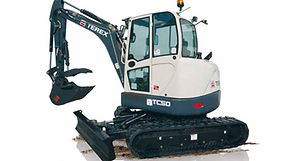

TC50 Mini Excavator

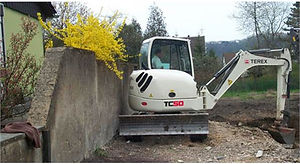

Designed for trenching and excavating applications and offering a stable, zero-tail swing platform, the 36-hp Terex® TC50 compact excavator excels in constricted work environments. It is designed to turn within its tracks, guaranteeing that the rear of the machine does not swing into nearby structures or landscaping or out into oncoming traffic during operation. In addition, the offset boom allows for working in close proximity next to buildings and foundations.
Ideal for landscape, plumbing, septic, electrical and utility installations, the TC50 excavator is designed with an 39.4-hp engine and load-sensing and load-independent flow division hydraulics system that are matched to the machine’s size. This gives operators a greater power ratio and smooth, simultaneous operation for maximum worksite production.
It weighs in at 11,070 lb, and it offers a maximum dig depth of 12 ft 2 in and a maximum reach of 20 ft 4 in. The optional quick-attach coupler system allows for easy bucket and attachment changes, offering contractors versatility for multiple jobsite applications with one machine. It is able to handle 2.4 – 8.2 ft3 bucket capacities, and it is ideal for using a hydraulic hammer. The 78-in wide dozer blade is independently controlled from the track drive for uninterrupted operation. And with a simple flip of a switch, operators can change from ISO to SAE controls to suit personal preference.
Built for consistent, reliable jobsite performance, the TC50 excavator is manufactured with top-mounted, inverted boom cylinders and spherical bearings. The inverted boom helps to prevent the cylinder seals and the hoses from dirt buildup and offer protection from the elements.
Transport weight kg (lbs) 4,820 (10,625)
Operating weight kg (lbs) 5,020 (11,070)
Engine power kW (hp) 26.5 (36)
Bucket capacity l (yd³) 68-232 (2.4-8.2)
Max dig depth mm (ft) 3,700 (12' 2")
Monobloc boom, with extended dipperstick 1,850 mm (6'1")
Crawler Chain Options
Steel crawler tracks, 400mm (16") wide
Rubber-coated steel crawler chain 'Roadliner', 400mm (16") wide.
Terex 'Fingertip' control (electro proportional) for additional control circuit for work attachments on right joystick, actuation via rollers
Terex 'Fingertip' control (electro proportional) incl. second additional control circuit on left joystick, actuation via rollers
Hose-rupture / load-retaining valve for boom with load warning device
Second additional control circuit (e.g. for sorting grab)
Hose-rupture / load-retaining valve for dipperstick
Biodegradable hydraulic oil / ester-based HLP 68 (Panolin)
Conversion kit from ISO controls to Schaeff controls
Float position - dozer blade
Operator’s seat MSG 85 (comfort version), hydraulic damping, extra-high backrest, tilt-adjustable armrests longitudinal-horizontal suspension, mechanical lumbar support
Operator's seat MSG 95 (premium version), air damping, extra-high backrest and tilt-adjustable armrests, longitudinal-horizontal suspension, seat and backrest heating, pneumatic lumbar support
Canopy with working floodligh
